A-703SP-LM Surface-Plate Mounting Fixture for L-703S Laser

A-703SP-LM Surface-Plate Mounting Fixture for L-703S Laser

Description

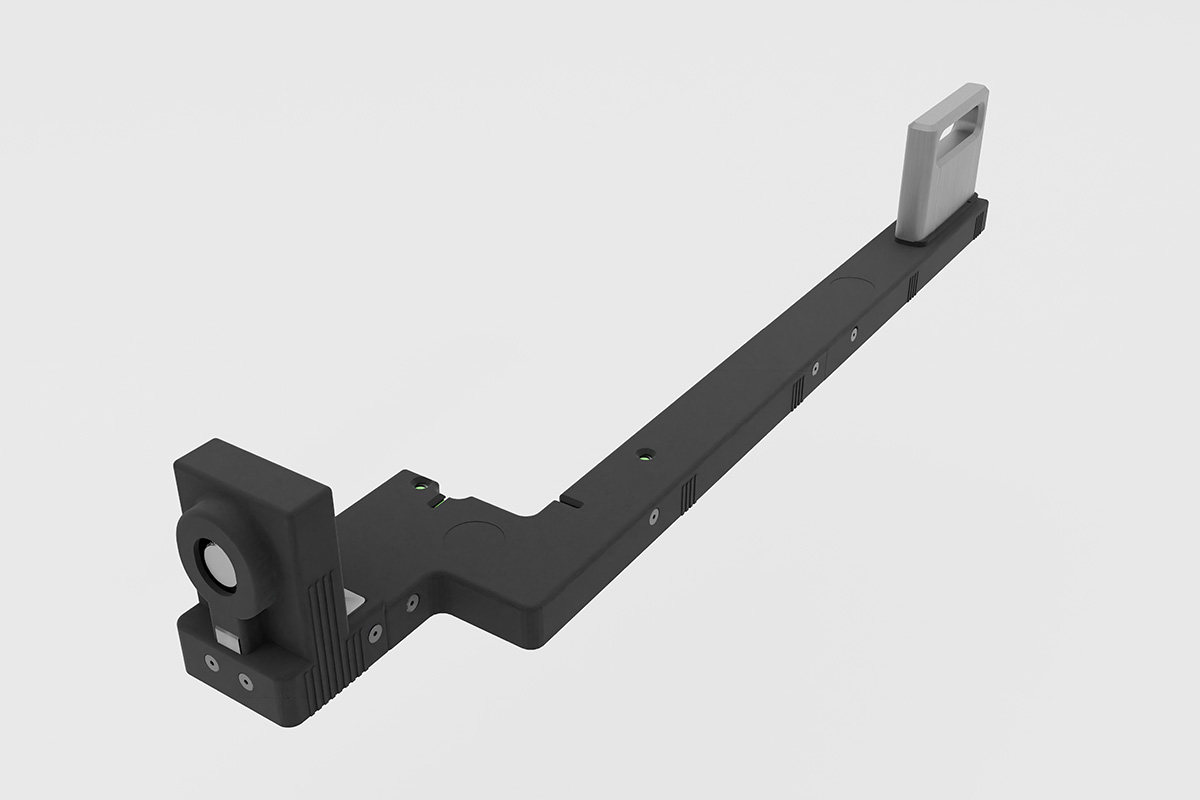

The A-703SP-LM is special surface-plate mounting fixture designed to provide a stable laser base and to make the laser setup process go faster.  It works with the L-703S Laser and A-703SP-SE-A/B Straight Edge & Scale, which gives the target a straight line to slide against when taking data.  It features 19.1 in (486 mm) of spacing between the front and back mounting feet to maximize stability and improve repeatability.  A second, shorter mounting distance of 11 in. (479 mm) is also available.

Applications

  • Granite, surface plate calibration
  • Steel surface plate calibration
  • Part straightness

Features

  • Specially designed to work with the A-703SP-SE Straight Edges to measure the flatness of surface plates.
  • It features a 3-point mount and 19.1 in. (486 mm) spacing between the front and back mounting feet for maximum stability.   A second mounting point is also available at 11.0 in. (279 mm) from the other 2 feet for smaller plates.
  • Special bearing design to interface with A-703SP-SE Straight Edges for improved laser stability.
  • Stainless steel for maximum life and temperature stability.

Specifications

Fixture Material:
440C Stainless Steel
Laser Mounting Hole:
Ø.4995 in. (12.69 mm)
Weight:
[1 lb (0.45 kg)]
Dimensions:
See drawing
Foot Spacing (Front to Back):
Choose two spacings: 11. 0 in. (279 mm) or 19.1 in. (486 mm) between the back feet and the front foot.

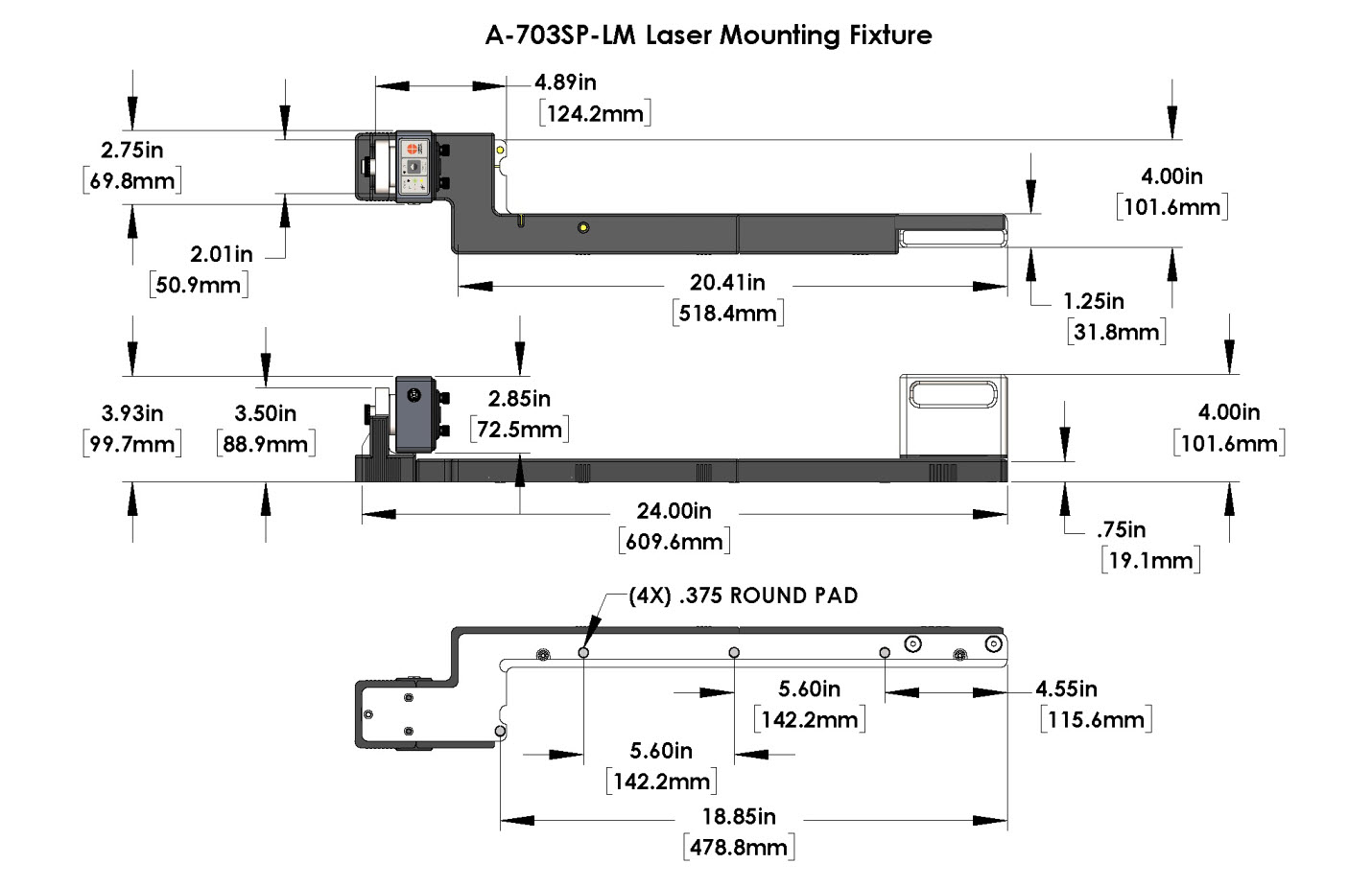

Drawings
